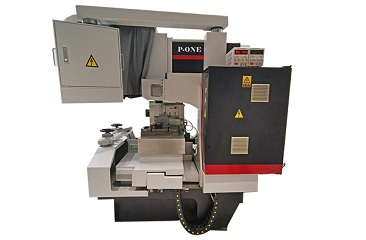

The curve grinding machine is a type of processing machine tool, which consists of two parts: the main machine and the auxiliary machine station. The main machine is of a fully enclosed structure. On the right side of the machine body, there is a multi-functional worktable. On the left side, there is a grinding wheel frame and a slide seat. The upper part is a CCD detection device. The electrical cabinet is located at the rear of the main machine and is integrated with it. The auxiliary machine station is integrated with a dust collection device, a cooling device, an air balance and a brake control station.

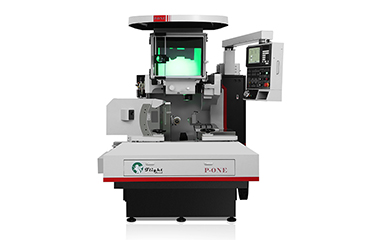

On an optical curve grinding machine, form grinding is carried out by using an optical projection magnification system to magnify the image of the workpiece onto a screen and compare it with the magnified image of the workpiece clamped on the screen. During processing, the grinding wheel is operated to grind the workpiece, removing the parts that cross the line until the contours of the image are completely aligned. It is mainly composed of the bed, coordinate worktable, grinding wheel frame and screen.

The curve grinding machine should be maintained and used by designated personnel, and regular inspections should be carried out to ensure that the machine tool is in good condition. 1. After the operation is completed, all parts of the machine, especially the sliding parts, should be wiped clean and then oiled. 2 Remove the grinding chips from all parts of the grinding machine. 3 Anti-rust treatment should be applied to necessary parts.

Operators must receive theoretical and practical training on optical curve grinding machines and pass the assessment to obtain the job qualification certificate before they can be qualified to operate.

Curve grinding on a surface grinding machine often results in some defects, such as obvious surface ripples, burns, scratches, patterns and grinding marks (thread flow), etc. To address these issues, the following measures can be taken:

Grinding machines can process materials with high hardness, such as hardened steel, hard alloys, etc. It can also process brittle materials, such as glass and granite. Grinding machines can perform high-precision grinding with very low surface roughness, as well as high-efficiency grinding, such as heavy-duty grinding. The curve grinding machine is a type of processing machine tool, which consists of two parts: the main machine and the auxiliary machine station. The main machine is of a fully enclosed structure. On the right side of the machine body, there is a multi-functional worktable. On the left side, there is a grinding wheel frame and a slide seat. The upper part is a CCD detection device. The electrical cabinet is located at the rear of the main machine and is integrated with it. The auxiliary machine station is integrated with a dust collection device, a cooling device, an air balance and a brake control station. How to set too large technical parameters?
